Anviz FaceDeep 5 IRT Contactless Thermal Facial Recognition System

£2,299.99 inc.VAT | £1,916.66 ex.VAT

Contactless facial recognition system with optional RFID identification and equipped with infrared thermal temperature screening. The FaceDeep 5 IRT delivers fast, accurate and safe time & attendance and/or access control.

Anviz Mount Bracket

Support & Set Up Services

Product Information

Anviz FaceDeep 5 IRT: Fast, accurate and safe Time & Attendance and Access Control

Facedeep5 Go2Clock banner full size

Artificial Intelligence (AI) based contactless facial recognition system with an infrared thermal camera

The Anviz FaceDeep 5 IRT is a new AI-based facial recognition and temperature screening terminal equipped with a dual-core Linux-based CPU and the latest BioNANO deep learning algorithm. The device supports up to 50,000 facial templates, and can authenticate users at a distance of less than 100ms using new facial template learning.

With the verification of over one million faces around the world, the Anviz FaceDeep 5 IRT has become one of the most accurate facial recognition terminals suitable for various environment and conditions. The accuracy of the facial and thermal authentication isn’t affected by makeup, hairstyles, facial hair or expressions, glasses, head wear or face masks.

The Anviz FaceDeep 5 IRT has a live face detection function through multispectral imaging technology, an infrared light camera, and a visible light camera. The device uses this multispectral imaging through dual cameras of visible light and infrared light to effectively identify fake faces from static pictures and videos.

The deviation of temperature screening is less than 0.3°C, and the maximum temperature measurement range can reach 2 meters to ensure the accurate and safe temperature screening process for users. It is equipped with a 5-inch IPS full-angle TFT-LCD screen and has a 1024px infrared thermal imaging temperature measurement module which enhances the temperature screening function accurately.

It can be used with the FREE Anviz CrossChex software which includes temperature reporting.

Idency: Anviz FaceDeep 5 IRT User & Registration Video

Anviz CrossChex Software Dashboard


Ultra-Wide Viewing IPS HD Screen

Ultra-wide viewing angle IPS HD LCD screen gives users the best interactive experience

Smart LED Fill Light

Smart LED light based on motion detection and auto-adjust with light environment to lower the consumption of the terminal

Dual HD Camera

Infrared and visible light dual HD cameras to achieve accurate and quick identification and live face verification

Anviz-FaceDeep-5-IRT-ProductImage

Ultra-Slim Design

Ultra-slim design reaching below 1CM thickness can perfectly fit various installation conditions

RFID Card Module

Compatible with EM cards, MIFARE 1K/4K cards, Mifare Desfire cards, and mobile NFC

Up to 50,000 Facial / Card Templates

Ideal for any size business, the Anviz FaceDeep 5 IRT can store up to 50,000 facial and card templates


Optional Terminal Mounts:

The following mounts options are available for the Anviz FaceDeep 5 IRT. Each mount is designed to overcome specific environment challenges, making terminal installation and usability easier and more efficient. Select your options when adding the FaceDeep to your basket.

Software and connection

The Anviz FaceDeep 5 IRT is compatible with Anviz Aim CrossChex time and attendance, and access control software. For integration with other systems please contact us for the SDK.

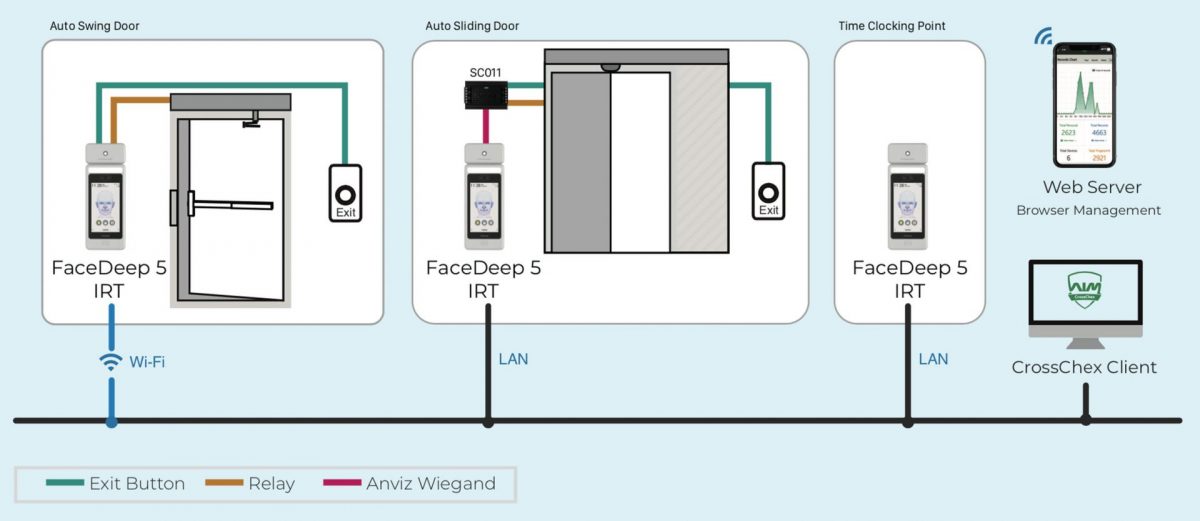

The system configuration diagram below shows the FaceDeep 5 IRT has flexible communication for WiFi or Lan, and convenient management for Web-server and PC software.

Anviz FaceDeep 5 IRT Network Diagram

Recommended installation height

Suggested installation height (the distance between the lens and the ground) is 1.4m for the FaceDeep 5, as the recognisable body height range, 0.5m distance away from the device, is 1.3m-1.7m; the recognisable body height range, 1m distance away from the device, is 1m-2m. (There are some deviations).


Idency AllTime logo

Time & Attendance Data Export Feed

Are you looking for an automatic feed of time and attendance records to import into your own HR management system, payroll or business software? We have an API solution that can provide you with that, and it’s compatible with this device.

Please click here to see Idency AllTime for more information.

Get in touch

Please arrange a FREE online demo with us where we can demonstrate how it works live.

For more information on the Anviz FaceDeep 5 IRT and compatible software please contact us.

Get in touch
Turnaround time on queries has been great”

HR Manager at Mademoiselle Desserts

Anviz Partner of the Year 2022 award
There is always someone to help and support us and we have needed that a lot recently with the implementation of the new devices.”

Lucy Lavender

HR Manager

Anviz Partner of the Year 2022 award
We have had no issues with you and would like to keep a good connection with you as a company especially with our soon change in our infrastructure project.”

Matthew Turnbull

IT Technician

Anviz Partner of the Year 2022 award

Features

  • Identification Modes: Facial recognition, RFID cards/Tags, pin codes/passwords for flexibility and ease of use
  • AI & Thermal Detection: New AI deep learning architecture and infrared technology with live detection range of 10-50℃
  • Dual Cameras: Built-in infrared light camera (67.57°), and a visible light camera (74.38°)
  • Facial User Capacity: 50,000
  • Card User Capacity: 50,000
  • Log Capacity: 500,000
  • Card: Standard RFID EM 125Khz, Optional Mifare
  • Identification Speed: <1 s
  • Communication Settings: RS485, TCP/IP, RS232, Wi-Fi
  • CPU: Dual Core Linux Based 1Ghz CPU with Enhanced AI Computing Power
  • Infrared Sensing: Infrared sensor activation
  • Multi-language: Support global multilingual display
  • Warranty: 1 Year RTB
