Anviz M5 Plus Outdoor Fingerprint RFID Reader Controller

£249.99 inc.VAT | £208.33 ex.VAT

External IP65 waterproof Access Control entry device with fingerprint and RFID card identification modes. Works with Anviz CrossChex and ClockReports software. Biometric access control can provide swift and secure access to your buildings.

Power Supply

Support & Set Up Services

Product Information

Fingerprint & RFID Terminal

Offering Access Control for Outdoor Installations

The Anviz M5 Plus is a new generation outdoor professional access control device. With a fast linux based 1Ghz CPU and the latest BioNANO® fingerprint algorithm, the M5 Plus ensures a less than 0.5 second comparison time under 1:3000 status. The standard Wi-Fi and bluetooth functions enable flexible installation and operation. The IP65 rating and IK10 design let the M5 Plus can be used in various outdoor environments. The Anviz M5 Plus also supports using bluetooth opening via the Anviz Crosschex E-key App.

The M5 Plus Outdoor Fingerprint RFID Reader Controller has metal casing with IP65 water-proof design, which makes it suitable for indoor or outdoor applications. The M5 supports 125kHz proximity cards and fingerprint identification. It has both Wiegand and TCP/IP protocol interfaces and can be combined with the SC011 (Power supply controller) to be a standalone access control device, or integrated with SAC844 (or professional distributed access controller from a third-party) to enable large-scale networks.

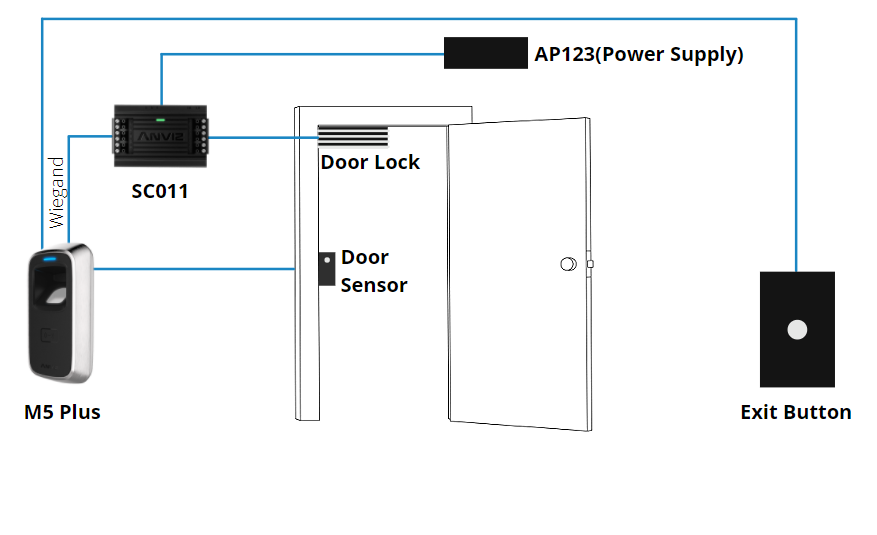

The Anviz M5 Plus Communication Diagram

Network Access Control System


Key Features of Anviz M5 Plus

Fast processing & operational speed

Better CPU (Central Processing Unit) with faster processing and operational speed.

BLE and WIFI

Equipped with BLE (Bluetooth Low Energy) and WIFI two-in-one module.

Internal relay

It can directly control an electric door without needing a SC011 controller.

Better security with SC011

It is recommended to use an additional controller for extra protection.


Compatible software

The Anviz M5 Plus is compatible with Anviz CrossChex and ClockReports software. Take a look at the Software Tab above and see what options are available for this unit and find a feature set that meets your requirement.


Please arrange a FREE online demo with us where we can demonstrate how it works live.

For more information on the Anviz M5 Plus and compatible software please contact us.

Get in touch

Features

  • For access control the Anviz SC011 Controller will also be required to create a secure system
  • 12VDC 2.0A Power Supply PD-30-12 not included
  • Slim and elegant design
  • Identification Mode: Fingerprint/Card/Fingerprint+Card
  • User Capacity: 2000
  • Fingerprint Capacity: 2000
  • Card Capacity: 2000
  • Log Capacity: 100,000
  • Fingerprint Sensor: 500 DPI Optical Sensor
  • Optical Fingerprint Sensor
    • Please note: this fingerprint sensor is not suitable for a manual working environment i.e. warehouse or construction. For those environments we recommend Facial Recognition or LE Fingerprint Sensors
  • RFID Card Reader: EM(125KHz)
  • Wiegand Protocol: Support Wiegand 26/34
  • Water resistant metal housing, IP65
  • Card read range: 0.8 to 3.1 in. (20 to 80 mm)
  • BioNANO algorithm ensures fast verification under 1 second
  • LED indicators and buzzer for visual and audio feedback
  • Multiple verification modes guarantee flexibility and safety
  • Multiple communication modes such as TCP/IP, Wiegand 26/34, easy for installation and integration
  • Tamper alarm output
  • Operating Voltage: DC 12v
  • Work Current: 150m
  • Operating Temperature: -5°C~50°C
  • Size(WxHxD): 19.7 x 48.8 x 13.6 in. (50 x 124 x 34.5 mm)
  • Compatible OS: Windows 7, 8.1, 10
