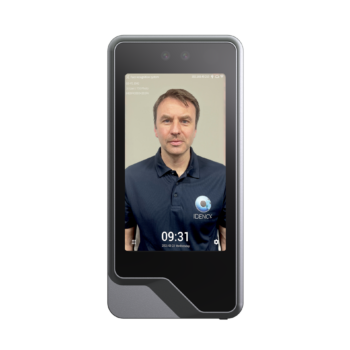

Anviz FaceDeep 5: Fast and accurate Time & Attendance and Access Control
Artificial Intelligence (AI) based contactless facial recognition system
The Anviz FaceDeep 5 is a new AI-based facial recognition terminal equipped with a dual-core Linux-based CPU and the latest BioNANO deep learning algorithm. The device supports up to 50,000 facial templates, and can authenticate users at a distance of up to 2 metres in less than 100ms using new facial template learning. IP65 rated, the device is ideal for external access control installations.
The Anviz FaceDeep 5 has a live face detection function through multispectral imaging technology, an infrared light camera, and a visible light camera. The device uses this multispectral imaging through dual cameras of visible light and infrared light to effectively identify fake faces from static pictures and videos. It is also equipped with a 5-inch IPS full-angle TFT-LCD screen for easy of use.
With the verification of over one million faces around the world, the Anviz FaceDeep 5 has become one of the most accurate facial recognition terminals suitable for various environment and conditions. The accuracy of the facial authentication isn’t affected by makeup, hairstyles, facial hair or expressions, glasses, head wear or face masks.
It can be used with the FREE Anviz CrossChex software which includes temperature reporting.
Some of the Anviz FaceDeep 5 Features
Anviz CrossChex Software Dashboard
Ultra-Wide Viewing IPS HD Screen
Ultra-wide viewing angle IPS HD LCD screen gives users the best interactive experience
Waterproof Design
The all-in-one waterproof design can adapt to more flexible environment applications
Smart LED Fill Light
Smart LED light based on motion detection and auto-adjust with light environment to lower the consumption of the terminal
Ultra-slim design
Ultra-slim design reaching below 1CM thickness can perfectly fit various installation conditions
Dual HD Camera
Infrared and visible light dual HD cameras to achieve accurate and quick identification and live face verification
RFID Card Module
Compatible with EM cards, MIFARE 1K/4K cards, Mifare Desfire cards, and mobile NFC

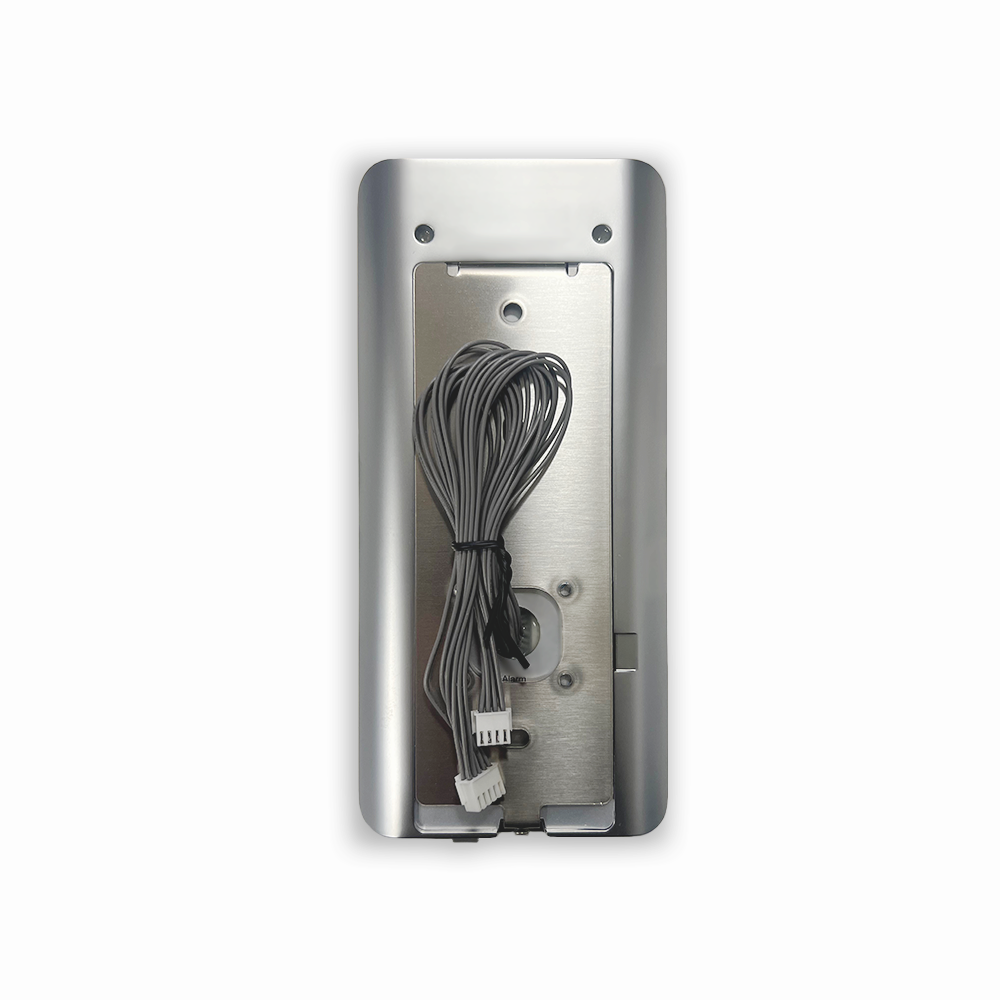

Optional Terminal Mounts:
The following mounts options are available for the Anviz FaceDeep 5. Each mount is designed to overcome specific environment challenges, making terminal installation and usability easier and more efficient. Select your options when adding the FaceDeep to your basket.
Software and connection
The Anviz FaceDeep 5 is compatible with Anviz Aim CrossChex time and attendance, and access control software. For integration with other systems please contact us for the SDK.

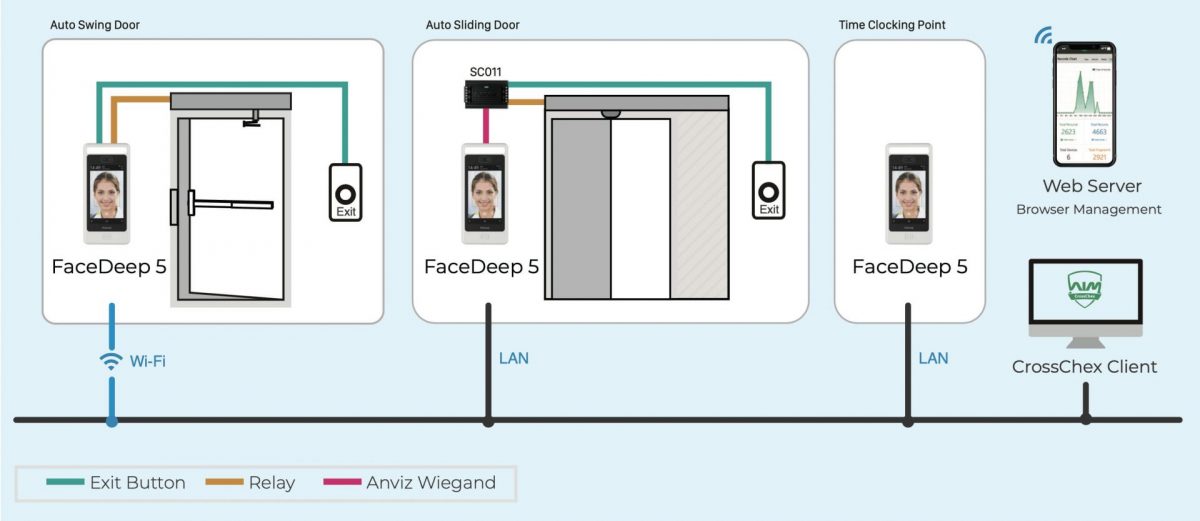

The system configuration diagram below shows the FaceDeep 5 has flexible communication for WiFi or Lan, and convenient management for Web-server and PC software.
Recommended installation height
Suggested installation height (the distance between the lens and the ground) is 1.4m for the FaceDeep 5, as the recognisable body height range, 0.5m distance away from the device, is 1.3m-1.7m; the recognisable body height range, 1m distance away from the device, is 1m-2m. (There are some deviations).
Time & Attendance Data Export Feed
Are you looking for an automatic feed of time and attendance records to import into your own HR management system, payroll or business software? We have an API solution that can provide you with that, and it’s compatible with this device.
Please click here to see Idency AllTime for more information.
Get in touchPlease arrange a FREE online demo with us where we can demonstrate how it works live.
For more information on the Anviz FaceDeep 5 and compatible software please contact us.
