ZKTeco RFID Access Control Bundle

£279.99 inc.VAT | £233.33 ex.VAT

RFID card or tag Access Control for internal or external doors. Free PC software & USB RFID reader to enrol users & monitor door activity.

SKU: ID-ZK-001 Categories: , Brand:

Suitable for both internal and external environments

The complete kit for your premises RFID access control solution

Suitable for both internal and external environments, you can add new users and manage access policies, time zones and personnel groups with the free PC software to be able to monitor the door status in real time. A perfect access control solution for gyms, sports clubs, schools and offices.

Who is it for?

A perfect access control solution for gyms, sports clubs, schools and offices.

Outdoor Installation

The KR613E uses (EM card 125KHz) RFID cards or PIN code identification methods. The device also features up to 10cm range and a LED indicator, making the device ideal for exterior IP64 or internal installation.

100% Secure

The KR613E reader is easy to install for one door control using RFID cards or PIN code, making it impossible to gain entry.

Security Systems Integration

The Access Controller can be integrated with other security systems such as CCTV, Fire Alarms and BAS systems for additional functionality, security & safety for your premises.

Connectivity Diagram

KR612E Connectivity Diagram

What’s included:

ZKTeco KR612E RFID Reader

Wall-mounted waterproof RFID device that can be used on both sides of the door.


ZKTeco C3-100 Controller

Controls the reader and connects via your network to the software.


ZKTeco CR20E USB Card Reader

Allows you to register new cards via USB onto your Windows PC.


Power Supply

The entire bundle is powered by a 12 V power supply.


Exit Button

Allows for simple exit via a switch style button.



Connect to any 12v electric magnetic lock. Not included.


FREE Access Control Software

This bundle can be connected to the free ZKAccess 3.5 Access Control software that allows you to monitor your doors in real time, set up access levels and time restrictions and generate detailed reports.

As mentioned in the above bundle product inclusions list, the CR20E USB RFID Card reader is then used to enrol new users.

ZKTeco’s ZKAccess 3.5 access control software is designed to manage all ZKTeco Access Control panels and standalone Access Control terminals. Use it to enrol new users, manage your access control devices in real time, and generate reports.

View product
ZKAccess product image

Please arrange a FREE online demo with us where we can demonstrate how it works live.

For more information on the ZKTeco RFID Access Control Bundle please contact us.

Get in touch


C3 Access Controller

  • Integration with other security systems (CCTV, Fire Alarm, BAS).
  • In/Out ports to control doors connecting door sensor, alarms, electric doors, and push buttons.

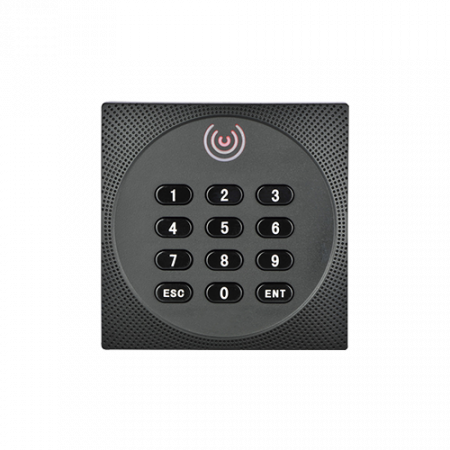

KR612E RFID Card Reader

  • Access with EM card 125KHz and/or password
  • LED indicator
  • Wiegand 34
  • Suitable for exterior IP64
  • Compatible with ZK-C3 controller and ZK-INBIO
  • Reading distance Up to 10cm
  • Read time < 300ms
  • Identification modes: RFID EM card 125KHz, PIN and combinations
  • Outputs Wiegand OUT 26bits | Pin 8bits
  • Power supply DC 6~14 V / 70 mA max.
  • Degree of protection Suitable for exterior IP64
  • Temperature operation -20º C ~ +65º
  • Dimensions 86(W) x 86(H) x 20(Fo)mm
  • Weight 50 g

CR20E USB Reader

  • Dimensions (LxWxH) – 117.2 × 17 × 66.2 mm
  • Compatible with WIN98/2000/XP/VISTA/7 32 and 64 bit
  • Power by USB – USB 5V DC / Max. 80mA

12vdc 2.0A Power Supply

  • Dimensions (LxWxH) – 90 × 50 × 28 mm
  • Power Supply Input – AC100/240V
  • Power Supply Output – DC 12 V 1.3 A
