Pepwave MAX BR1 Cellular Router

Industrial-Grade Cellular Router with Embedded LTE/4G Modem. Perfect for remote sites without a wired internet connection.
Please contact us for pricing.

SKU: MAX-BR1-LTE-E-T Categories: , Brand:
Product Information

Pepwave MAX BR1 Cellular Router

The Pepwave MAX BR1 brings wireline reliability to environments like no other solution, giving you the ultimate experience in mobile connectivity. With the ability to combine a variety of wireless services, the Pepwave MAX BR1 gives you maximum reliability through automatic link failover and scalability with multi-WAN load balancing and SpeedFusion bandwidth bonding.

Automatic Failover 4G LTE Mobile Router

The MAX BR1 offers redundant SIM slots with automatic switching, DC or terminal block power capability, advanced GPS fleet tracking, and remote management, all packed into a durable metal enclosure.

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 mobile router to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.

SpeedFusion Hot Failover

In case of a WAN failure, SpeedFusion technology powers the MAX BR1 for instant failover.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Customisable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server. With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

Certified for Rugged Environments and Train Deployments

In addition to rugged metal enclosure, the MAX BR1 mobile router is certifications for: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) The MAX BR1 is equipped with a terminal block for secure power installation in vehicles and other locations.

Specifications are subject to change and vary according to model. For details, please visit manufacturer’s website.

For more information and volume incentive discounts please contact us.

GET IN TOUCH

Features

  • WAN Interface: 1x FE, Embedded LTE/3G Modem with Redundant SIM Slots
  • LAN Interface: 2 x FE
  • Wi-Fi Interface: 802.11b/g/n 300 Mbps Wi-Fi WAN and/or AP
  • Recommended Users: 1-60
  • Router Throughput: 100Mbps

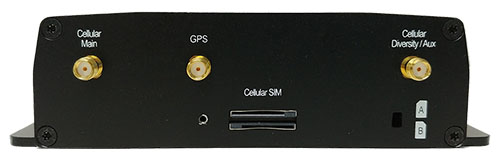

  • Cellular & GPS Antenna Connector: 2x SMA Antenna Connectors, 1x SMA GPS Antenna Connector, 1x Wi-Fi Connector
  • Power Input: DC Jack/Terminal Block: 10V – 30V DC
  • Power Consumption: 16W (max.)
  • Dimensions: 5.8 x 5.0 x 1.6 inches (147 x 128 x 40 mm)
  • Weight: 0.96 pound (435 grams)
  • Operating Temperature: -40° – 149°F (-40° – 65°C)
  • 1-Year Limited Warranty
